Range Rover P25A9 Fault
A Range Rover Velar was brought in for diagnosis after engine and oil system warnings appeared
Mr J’s 2018 Range Rover Velar had given him nothing to worry about. So when the warnings appeared, they came as a complete surprise. The engine management light appeared on the dashboard, accompanied by a warning message connected to the engine oil system.
When an oil-related warning appears for no obvious reason, it puts any driver on edge. The Range Rover Velar engine warning lights were a real cause for concern for Mr J. What was behind them? Was the vehicle safe to keep using? And was there a risk that ignoring them could lead to further problems?
Mr J, from Wigan, contacted Standish Service Station in Standish after a friend put him in touch with us. He wanted the fault properly investigated, with an explanation of what was going on and what needed to happen.
Mr J brought the vehicle to us at the first opportunity.
Engine management and oil system warnings can point to a fault that requires further diagnosis
Starting with the Driver’s Account and Initial Scan Results
The first thing our technicians at Standish Service Station, Standish, needed was Mr J’s account of events. We asked when the warnings had first come on, whether they had remained on throughout or appeared intermittently, and whether anything about the vehicle had felt different in the period leading up to them.
With that detail gathered, our technicians connected dealer-level diagnostic equipment and carried out a full system scan. The scan delivered one stored fault code:
- P25A9-13: Piston cooling oil control circuit open. An open circuit had been detected by the engine control module (ECM) within the electrical circuit of the piston cooling oil control valve.

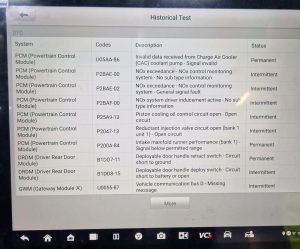

Diagnostic testing identified P25A9-13, indicating an open circuit in the piston cooling oil control system
Pistons generate heat during engine operation, and to help control this, oil jets inside the engine block spray engine oil onto the underside of the pistons. The piston cooling oil control valve controls the flow of engine oil to these jets. If the electrical circuit between the ECM and the valve is interrupted, the ECM may not be able to actuate the valve correctly. When that happens, oil may not reach the piston cooling jets as intended.
This can trigger the engine management light and an oil-related warning message, even when the oil level is fine. The warning can be about oil flow control, not necessarily oil quantity.
The fault code was confirmed and the symptoms accounted for. Our technicians moved into a structured diagnostic process to pinpoint the root cause of the Range Rover P25A9 fault.
A Step-by-Step Investigation Revealing the Root Cause of the Range Rover P25A9 Fault
The stored fault code had given our technicians a clear lead for the P25A9 Range Rover diagnostic. An open circuit had been flagged, but the code didn’t tell us where the break was. It could have been in the wiring, the connector, the valve, or elsewhere in the circuit. Our technicians worked through each possibility methodically.
Step 1: Reviewing manufacturer technical data
Before beginning any physical checks, our technicians reviewed the manufacturer’s technical information system. This covered known issues, technical service bulletins, recalls, and field remedies connected to the P25A9 fault on the Range Rover Velar.
- Our technicians use this step to make sure the diagnostic process is aligned with current manufacturer guidance.
Step 2: Wiring harness inspection
The wiring harness running to the piston cooling oil control valve was visually inspected for damage, chafing, corrosion, or any sign that the harness had been disturbed.
- The harness was in good condition. No faults were visible.
Step 3: Connector and terminal pin checks
Our technicians inspected the electrical connector at the valve and each terminal pin within it. Corrosion, a displaced pin, or a loss of proper contact can all produce an open circuit reading, even when the wiring is in good condition.
- The connector and terminal pins were acceptable. No corrosion or mechanical issues were present.
Step 4: Oscilloscope testing of the circuit
Our technicians used an oscilloscope to test the electrical integrity of the wiring between the engine control module and the piston cooling oil control valve. This captured signal and supply performance under live operating conditions, rather than depending on a static resistance check.
- The wiring tested within expected parameters, confirming the circuit between the control module and the valve was intact.
Step 5: Valve activation test
With the wiring, connector, and terminal pins all cleared, the valve was the last element requiring assessment. Our technicians used dealer-level diagnostic software to command the valve to activate and monitor its response.
- The valve did not respond as it should have. Testing indicated the valve had failed, confirming it as the root cause of the Range Rover P25A9 fault.
Each part of the circuit had been tested individually and cleared. The wiring and connections were all sound, and the failure sat within the valve itself.
How the Piston Cooling Oil Control Valve Was Replaced
The findings were conclusive. Our team at Standish Service Station got in touch with Mr J to explain what had been found. We went through each stage of testing, confirmed that the wiring and connectors had all been cleared, and explained why the piston cooling oil control valve needed replacing. Mr J approved the repair, and our technicians got to work.
Here’s what was carried out:
- The failed piston cooling oil control valve was removed from its position in the engine block. The valve is located beneath other engine components, and reaching it required the careful removal of surrounding components without disturbing adjacent systems.
- A new replacement valve was fitted. Seating, sealing, and electrical connections were all confirmed before reassembly.
- The harness and connector were reconnected to the new component.
- All stored fault codes were cleared from the engine control module.
- Post-repair system checks confirmed the replacement valve was responding correctly to the engine control module.
- A final system scan verified no outstanding fault codes and confirmed the oil-related warning message had cleared.
Clear Dashboard, Confirmed Fix: The Range Rover Oil Control Valve Replacement Result
The engine management light was off, and the oil-related warning was gone. Mr J’s Range Rover Velar left Standish Service Station with the piston cooling oil control valve failure fully diagnosed, repaired, and verified. The system was operating as it should.
For Mr J, the process delivered exactly what he needed: a structured investigation that worked through each section of the circuit, a fault traced to a failed piston cooling oil control valve, and the whole problem resolved in one visit. Our team at Standish Service Station kept Mr J informed throughout, with clear and honest communication at every stage.
What Mr J gained by choosing Standish Service Station was clarity: a professional diagnosis, a competitive repair cost, and the confidence of knowing exactly what was wrong and that the Range Rover P25A9 fault had been properly resolved.
