BMW Fault Code 030E0A

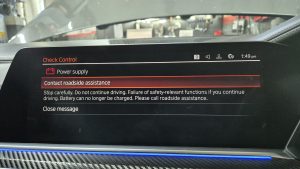

“Stop carefully. Power supply.”

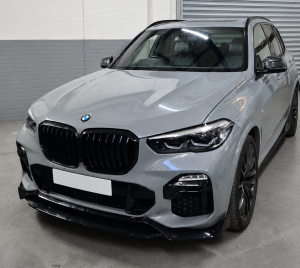

Mrs U wasn’t prepared for this message to appear on her BMW X5 M40D dashboard, and when it did, accompanied by a red battery icon, the worry set in straight away.
This wasn’t something to take lightly. The vehicle was signalling a fault within the power supply system, and any further driving could impact vehicle operation and system functionality.
The timing behind it only deepened the mystery…
Mrs U had left her BMW parked at the airport for two weeks during a holiday. Before travelling, everything about the vehicle had been perfectly normal. On her return, the dashboard showed a warning she had never previously seen, and the check control system had flagged a power supply alert.
Wanting answers from someone she could trust, she searched online for a BMW diagnostic specialist. After a friend’s recommendation, Mrs U chose Standish Service Station, Standish, and brought her BMW X5 in for a comprehensive and reliable inspection.
Here, you’ll learn how our specialists diagnosed BMW fault code 030E0A, uncovered the root of the power supply warning, and confirmed the repair.
Our Opening Assessment of the BMW X5 Power Supply Warning
When Mrs U arrived at Standish Service Station, Standish, our BMW specialists began by giving her the opportunity to describe everything she had experienced.
Hearing the driver’s account is where every investigation at our garage begins. What has been seen, noticed, and heard provides our team with the insight needed to steer the investigation effectively from the outset.
Mrs U explained the red battery icon and the “Stop carefully. Power supply.” message that had appeared after her BMW had been left parked for two weeks. Up until that point, there had been no signs of trouble, no warnings, and no work recently done on her vehicle.
With that picture clear, our BMW technicians progressed to the opening checks.
Our initial assessment consisted of:
- Starting the vehicle and observing the warning messages and live serial data to confirm the fault was present.
- Running a full system scan with manufacturer-level diagnostic software to recover all stored and active fault codes.
- Conducting a visual inspection of relevant components to check for any obvious signs of damage or disconnection.

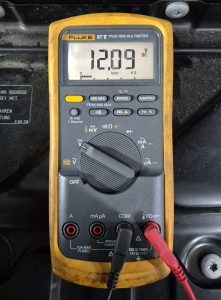

- Carrying out initial electrical checks without any component removal.

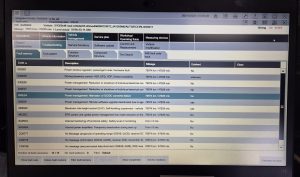

The scan identified one significant fault code: 030E0A, described as “Power management: Alternator or DC/DC converter failure”.
What Is BMW Fault Code 030E0A?
BMW fault code 030E0A indicates a fault within the vehicle’s power management system.
In 48V mild-hybrid models, the fault may stem from the starter-generator, the DC/DC converter, or the associated wiring. The code itself does not specify which component within the system is at fault.
Because multiple potential sources were highlighted by the fault description, an in-depth investigation was essential to establish the true cause before any components were replaced.
What Was Responsible for the BMW X5 Power Supply Fault?
BMW fault code 030E0A was now confirmed, and our team needed to track down exactly what was causing the power supply fault.
On most vehicles, a fault like this would steer the investigation straight toward the alternator and charging circuit. The BMW X5 M40D is built differently, though. Its 48V mild-hybrid system requires a separate diagnostic approach.
Instead of a conventional 12V alternator working on its own, this BMW operates with a 48V starter-generator. It performs two functions: getting the engine started and generating power for the 48V electrical system. A DC/DC converter then routes that energy across to the 12V network.
Faults in this system don’t remain isolated. They can affect both the 48V and 12V sides, triggering warnings across multiple control modules.
Our BMW specialists reviewed the manufacturer’s technical information system, examined current flow diagrams, and pulled up any relevant technical service bulletins related to the power supply fault.
What they discovered served as the basis for a structured test plan for our technicians.
From there, the manufacturer’s diagnostic tool was used to create and execute a repair plan driven by fault codes logged across the vehicle’s control modules.
Specialist electrical and load-testing equipment was then brought in to test the performance of the power supply system across the wiring, connectors, and the 48V starter-generator.
The outcome left no room for uncertainty…
The 48V starter-generator was not operating within expected parameters, which had caused the BMW fault code 030E0A and the power supply warning Mrs U had noticed on her dashboard.
What Does the 48V Hybrid System Do on the BMW X5 M40D?
The BMW X5 M40D runs on a 48V mild hybrid system. This is a completely different technology to a plug-in hybrid or a fully electric vehicle. It has no facility for external charging and cannot provide electric-only driving.
The system exists to work alongside the diesel engine, providing extra support during acceleration, recovering energy during braking, and keeping the electrical systems powered.
Everything hinges on the 48V starter-generator. This one component covers the roles of both a traditional alternator and starter motor. A DC/DC converter works in partnership with it to power the 12V system. Should this component develop a fault, the vehicle’s ability to manage its power supply is affected, and warnings like the one Mrs U received can be the result.
When faults arise in the 48V system, they are commonly referred to as a BMW hybrid charging fault. On this BMW X5 M40D, the fault has nothing to do with the high-voltage battery used in plug-in hybrids or electric vehicles.
It all relates to how the vehicle generates and distributes electrical energy throughout its systems.
When a BMW hybrid charging fault develops, the charging process fails, and the vehicle can no longer generate and direct energy as the manufacturer designed, which triggered the power supply warning on Mrs U’s dashboard.
Resolving the BMW X5 Charging Problem Step by Step
Once the root cause of the problem was clear, our experts reached out to Mrs U with a thorough explanation of what the investigation had found.
We discussed how the 48V starter-generator wasn’t performing within expected parameters, the reason this had caused the BMW battery warning light and the power supply message, and what was needed to correct the fault.
At Standish Service Station, Standish, we won’t proceed with any work until you fully understand the fault and have given your approval.
Mrs U felt reassured by our team’s explanation and gave her consent for the repair to proceed.
Our BMW specialists then undertook the repair:

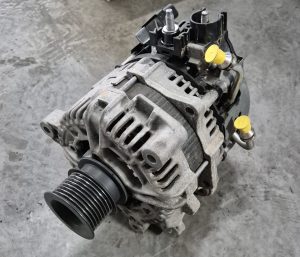

- The faulty 48V starter-generator was carefully removed, and the mounting area was inspected for any signs of secondary damage or deterioration.
- A replacement 48V starter-generator was installed.
- The required programming was completed using manufacturer-level software, registering the new component with the vehicle’s control systems and confirming full communication across all modules.
Once the new starter-generator was in position and all programming was complete, the BMW X5 charging problem was prepared for its final verification.
Final Verification: Confirming the BMW Power Supply Fault Was Resolved
After the new 48V starter-generator had been installed and all software programming completed, our technicians conducted a full series of post-repair checks to ensure the fault had been fully resolved.
Our team took the following verification steps:
- Cleared the stored 030E0A fault code from the system with manufacturer-level software.
- Ran a complete scan across every control module to confirm no additional fault codes were present anywhere in the system.
- Ensured the red battery warning light had cleared and that no power supply messages remained within the check control system.
- Analysed live serial data to verify that the 48V and 12V charging systems were both operating within expected parameters.
At every step of our validation process, the repair was confirmed as successful.
The X5’s power supply system was working correctly, the dashboard warning had disappeared, and no further faults were logged.
By following a structured diagnostic process, our team identified the exact cause of the BMW fault code 030E0A, with no unnecessary part replacements or guesswork. Everything, from the initial investigation to the completed repair, was finished in a single visit.
Once fully satisfied with the results, our specialists contacted Mrs U to let her know that her BMW X5 was ready for collection.
She was pleased with the quality of the repair, the straightforward communication at every stage, and the efficient turnaround, all completed at a lower cost than a comparable main dealer repair.
Concerned About a BMW Charging Fault? Book an Inspection at Standish Service Station
Is your BMW showing a battery warning light, a power supply message, or a drivetrain alert?
Having a BMW X5 charging fault investigated promptly is the best way to prevent a minor issue from becoming a more significant repair.
A BMW hybrid charging fault is not straightforward to diagnose. A BMW X5 charging problem can result from several causes, from starter-generator failure and DC/DC converter faults through to wiring issues and software errors.
It takes a BMW specialist with the right expertise and technology to get to the bottom of it.
Without a structured diagnostic approach and manufacturer-level technology, there is a clear risk of replacing the wrong part or missing the real cause entirely.
At Standish Service Station, Standish, our team combines a structured diagnostic process with manufacturer-level technology to find the root cause and carry out the repair correctly the first time.
