Land Rover DPF Fault

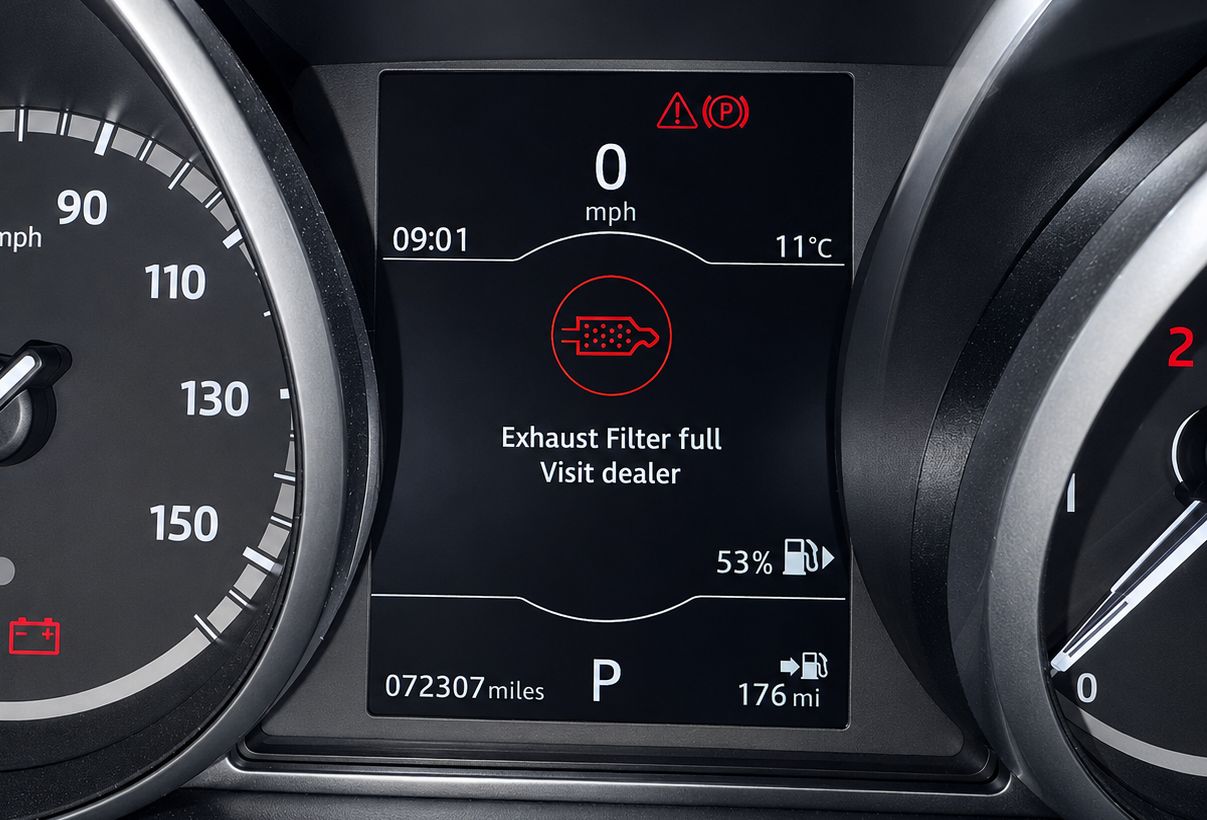

Everything had been perfectly normal. Then, without any build-up, warning lights spread across the dashboard of Mr J’s 2017 Land Rover Discovery Sport. Power dropped sharply, and the vehicle fell into limp mode.
For any driver, that kind of sudden change is unsettling. Is the vehicle safe to keep using? What set the warning lights off? Could the problem cause lasting damage if it isn’t addressed?
Mr J, from the Walsall area, reached out to Standish Service Station, Standish, for help. The blocked DPF symptoms his Discovery Sport was displaying pointed toward a fault that needed to be properly investigated and resolved, not simply reset and hoped for the best.
He needed a garage with the right technical knowledge, the correct equipment, and a structured process to get to the bottom of the issue. Mr J booked his Discovery Sport in with Standish Service Station for a thorough technical evaluation.
Reviewing the Driver’s Concerns and Blocked DPF Symptoms

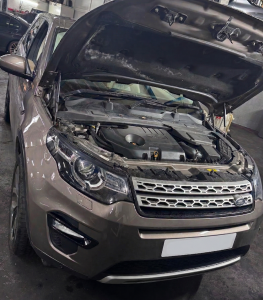

When the Discovery Sport arrived at Standish Service Station, Standish, our first step was to speak with Mr J and build a full picture of what had happened. We asked when the warning lights had first appeared, how the vehicle had been performing since, and whether his regular driving routine had changed at all.
Frequent short journeys with regular stopping and starting are among the most common contributors to DPF problems. The engine simply cannot reach or hold the temperatures required for regeneration to complete successfully. Getting a clear understanding of Mr J’s typical driving habits was an essential part of the assessment before any hands-on work began.

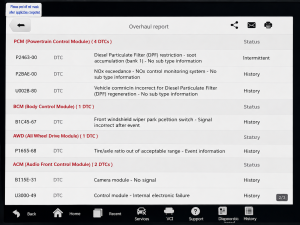

With that context in place, our technicians connected the Discovery Sport to our dealer-level diagnostic equipment and ran a comprehensive system scan. Two stored fault codes were directly related to the DPF concern:
- Land Rover P2463 fault code — P2463-00, confirming the engine management system had recorded excessive soot accumulation or restriction within the diesel particulate filter.
- Land Rover P246B fault code — P246B-00, confirming that the conditions required for DPF regeneration were not being met consistently, or that the regeneration cycle had been cut short before completing.
Both codes pointed toward DPF issues, but on their own they only told part of the story. To understand exactly what had caused the DPF warning and stored fault codes, and to ensure the correct repair was carried out, a more detailed inspection was essential.
Our technicians moved into a structured, step-by-step investigation to confirm the root cause.
Tracing the Fault Through Detailed Inspection
The scan had confirmed that the DPF was heavily loaded with soot and that regeneration was not completing. But before any repair could be carried out, our technicians needed to establish why the filter had reached that state. A Land Rover DPF fault can stem from several different causes, and the right repair depends entirely on identifying the specific one. Each potential factor was assessed methodically, with one ruled out before the next was examined.
Step 1: External DPF Inspection

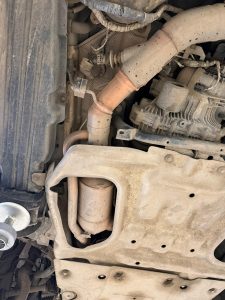

Our technicians started by checking whether the DPF was still structurally sound. A cracked or compromised filter substrate would change the repair approach entirely, potentially requiring replacement rather than cleaning.
- The DPF housing and surrounding components were inspected and showed no signs of physical damage or failure.
- This confirmed the filter was likely suitable for cleaning rather than replacement.
Step 2: Oil Level, Condition, and Oil Dilution Check
Next, the engine oil level and condition were assessed, with particular attention to whether oil dilution had occurred. Oil dilution develops when DPF regeneration attempts fail to complete. During a regeneration cycle, the engine management system introduces additional fuel through late post-injection to raise exhaust gas temperatures. If the cycle is interrupted, some of that fuel can wash past the piston rings and enter the engine oil rather than being burnt off through the exhaust.
- Clear evidence of fuel dilution was found in the engine oil.
- Diluted oil degrades over time and can affect overall engine condition. Meanwhile, the ongoing failure to regenerate meant soot had no way of being cleared from the DPF, and the accumulation continued to worsen.
With oil dilution confirmed, our technicians continued the inspection to determine whether any other factors were also at play.
Step 3: Air Filter Condition Check
The air filter was examined next. A restricted air filter reduces the airflow reaching the engine, which can lower combustion efficiency and increase particulate production. This increases the volume of particulates produced and places a greater load on the DPF over time.
- The air filter was in acceptable condition and was ruled out as a contributing factor.
Step 4: DPF Pressure Readings
Differential pressure across the DPF was recorded using our dealer-level diagnostic equipment.
- The readings were elevated, confirming that the filter was holding a considerable soot load.
- This was consistent with the Land Rover P2463 fault code logged during the initial scan.
Step 5: Boost Leak Assessment
Finally, the intake and boost system was inspected for leaks. A boost leak reduces combustion efficiency and can accelerate the rate at which soot loads the DPF.
- No boost leaks were identified.
With every area now thoroughly investigated, the root cause was confirmed. The DPF had been unable to regenerate, and soot had accumulated in the filter steadily over time. The oil dilution discovered during the inspection was entirely consistent with repeated failed regeneration attempts. That gradual build-up had eventually reached the point where the dashboard warning lights appeared, the vehicle entered limp mode, and power was significantly reduced.
Testing ruled out any sensor or hardware fault that would have prevented regeneration from completing, pointing firmly toward driving conditions and interrupted regeneration cycles as the underlying cause.
Land Rover DPF Fault: The Targeted Repair Process
With the root cause established, our technicians contacted Mr J to walk him through the findings and outline the proposed repair. Once he confirmed he was happy to go ahead, the work began.
Engine oil and filter change
The engine oil had become fuel-diluted through repeated failed regeneration attempts and was no longer providing adequate engine protection.
- The contaminated oil was fully drained and a complete oil and filter change was carried out.
- The replacement oil was the correct Land Rover-specified grade for the Discovery Sport’s Ingenium diesel engine, applied in accordance with manufacturer standards.
Diesel particulate filter cleaning
With fresh oil now in the engine, our technicians turned their attention to the DPF. The filter had been confirmed as structurally intact during the earlier inspection, so diesel particulate filter cleaning was carried out to reduce the soot load and restore flow through the filter before performing regeneration.
Forced DPF regeneration and system reset
Once the filter had been cleaned, a service regeneration was initiated using the manufacturer-level software.
- Following the regeneration, relevant DPF adaptation and soot loading values were reset in accordance with manufacturer procedures, ensuring the engine management system could accurately monitor the filter following cleaning and regeneration.
- The fault memory was cleared and the system retested. No new fault codes were recorded.
Customer guidance
On the Ingenium diesel engine, frequent short journeys can prevent DPF regeneration from completing. When regeneration is interrupted, fuel introduced through late post-injection, intended to raise exhaust temperatures for regeneration, can wash past the piston rings. Over time, this leads to oil dilution.
- Our technicians spoke with Mr J about this and outlined the driving habits that would help support the DPF regenerating correctly going forward.
Blocked DPF Symptoms Resolved: The Outcome for Mr J
When Mr J collected his 2017 Land Rover Discovery Sport from Standish Service Station, Standish, the transformation was clear. Full power had returned, every dashboard warning light had cleared, and the vehicle was running smoothly with no trace of limp mode. The blocked DPF symptoms that had brought him in were completely resolved.
The lasting success of the repair came down to addressing what was actually causing the problem, rather than just treating the surface-level symptoms. The diluted oil was replaced to protect the engine, the soot load was reduced, and a controlled regeneration brought the DPF system back to correct operation. Every contributing factor had been properly addressed.
Mr J also left with a clear understanding of how the DPF system in his Discovery Sport works, the part his driving habits had played in the fault developing, and practical steps to reduce the risk of DPF regeneration issues returning in the future. That knowledge carries real value; a driver who understands what to watch for is far better positioned to avoid the same problem down the line.
The outcome was a first-time resolution, completed at a competitive price compared to a main dealer, with clear and open communication throughout.
