P2681 Fault Code
You’ve driven this route countless times before. Same car, same feel, same confidence behind the wheel. But today…
…Something catches your eye.
An amber engine management light has appeared on your vehicle’s dashboard.
That’s the situation Mr S found himself in with his Volkswagen Golf GTI. His engine management light had appeared during a normal drive, with nothing else to suggest a fault.
Not willing to leave it unchecked, Mr S wanted the issue properly investigated by a garage he could rely on. After looking online and reading reviews, he chose our VW specialists at Standish Service Station, Standish.
In this article, you’ll discover how our team carried out a structured investigation, traced the true cause of the warning light, completed the appropriate repair, and returned his Golf GTI to full working order.
How Our VW Specialists Assessed the Golf GTI Engine Warning Light
When Mr S arrived at Standish Service Station, Standish, our VW specialists began by taking the time to listen to what he had experienced.
Mr S described how the engine management light had appeared out of nowhere. His Golf GTI still drove and sounded exactly as it always had, with no other symptoms. There had been no recent work on the vehicle, and nothing else to raise concern.
This kind of detail is an important part of any investigation at our garage.
What the driver has noticed, combined with what hasn’t changed, gives our team the direction they need to focus their assessment accurately from the start.
With those details gathered, our technicians proceeded with the first stage of checks:
- A visual inspection was carried out to look for any apparent signs of damage, disturbed components, or loose connections.
- A full fault code scan was run using Volkswagen manufacturer-level diagnostic software to retrieve any stored or active codes.
The visual inspection didn’t turn up anything unusual. The fault code scan, however, returned one key result:
- P2681 00, Engine Coolant Bypass Valve Control Circuit Open.
This alerted our experts that the engine control unit had detected a fault within the electrical circuit controlling the VW Golf GTI coolant bypass valve. This component forms part of the vehicle’s cooling system.
A Volkswagen P2681 fault code indicates that the engine management system has detected a fault, but it doesn’t reveal the underlying cause. The source could be the valve itself, the wiring, a connector issue, or another element of the circuit.
Our team needed to investigate further to find the cause of the Golf GTI cooling system fault.
Tracing the Source of the P2681 Fault Code on the Golf GTI
With the Volkswagen P2681 fault code confirmed, our team’s next task was to determine what was actually causing it. A fault code highlights the area where the system has detected a problem, but uncovering the real root cause requires a structured and thorough approach.
Our VW specialists began by accessing Volkswagen’s official technical information software, the same level of manufacturer data available to main dealerships. This covered known faults, wiring diagrams, and component specifications for the VW Golf GTI coolant bypass valve and the circuit it operates within.
While reviewing this data, our experts identified a documented known concern from Volkswagen that closely matched what this Golf GTI was displaying.
Armed with that knowledge, our team put together a focused test plan:

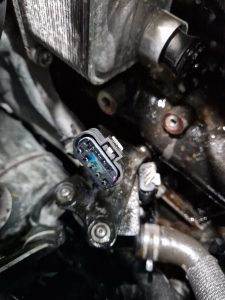

- Carry out active testing of the coolant bypass valve through the manufacturer software, commanding the valve to respond and monitoring its behaviour.
- Study Volkswagen wiring diagrams to trace the valve’s complete electrical circuit.
- Connect an oscilloscope to assess the signal quality and wiring condition throughout the coolant bypass valve circuit.
When our VW experts used the VW software to command the coolant bypass valve to activate, no response was observed. This told our team that the valve was not operating as expected and that the circuit required further examination.
To establish whether the fault originated in the valve or the wiring, our experts connected an oscilloscope, a precision instrument for measuring electrical signals, and directly assessed the circuit.
The oscilloscope data left no doubt: the valve had failed internally and could no longer allow the circuit to function as intended. This internal electrical fault disrupted the control circuit, triggering the P2681 fault code.
The finding explained why the engine control unit had raised the fault. The valve’s circuit was no longer operating within its expected range, and the ECU had activated the engine management light in response.
With the VW coolant system diagnosis verified, our team were ready to contact Mr S and discuss the repair needed to resolve the issue.
How Was the Golf GTI Coolant Valve Fault Repaired?
With the root cause of the Volkswagen P2681 fault code now verified, our technicians got in touch with Mr S to walk him through what had been discovered.
We explained that the VW Golf GTI coolant bypass valve had failed internally, and that this was directly behind the engine management light appearing. We also outlined why replacing the valve was the correct course of action to restore the cooling system to full operation and resolve the Volkswagen P2681 fault code.
At Standish Service Station, Standish, no repair is carried out until you have a clear understanding of the issue and have given your approval to go ahead. You remain in complete control from start to finish.
Mr S was pleased that the cause had been identified and gave our team the green light to proceed with the repair.

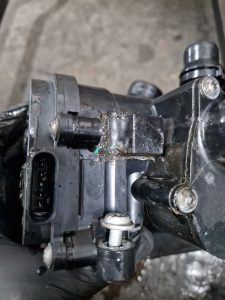

Our VW specialists then replaced the VW Golf GTI coolant bypass valve in accordance with Volkswagen’s approved procedures.
The failed coolant bypass valve was removed, and a new high-quality replacement valve meeting manufacturer specifications was fitted to return the VW Golf GTI cooling system to top working condition.
Alongside this, our experts inspected the associated wiring and connections, testing them to confirm that the control circuit was intact and free from any additional faults.
With the new valve fitted and fully connected, the cooling system was prepared for a final set of confirmation checks to verify that the Golf GTI cooling system fault had been entirely resolved.
Confirming the Golf GTI Cooling Fault Was Fully Fixed
With the new VW Golf GTI coolant bypass valve fitted, our specialists carried out a rigorous series of checks to confirm that the Volkswagen P2681 fault code had been fully resolved and that the vehicle’s cooling system was functioning as VW intended.
Our team worked through the following confirmation steps:
- Cleared all stored fault codes using Volkswagen manufacturer-level diagnostic equipment.
- Carried out active testing of the new coolant bypass valve, commanding it to operate and confirming it responded correctly.
- Ran a full system scan to check that no additional fault codes had been logged.
- Monitored live data to ensure the cooling system and bypass valve were operating within expected parameters.
The confirmation checks confirmed that the coolant bypass valve repair had been successfully carried out. The valve operated correctly, the engine management light remained off after testing, and no further faults were found.
By identifying and resolving the engine coolant bypass valve failure at an early stage, the issue was prevented from developing into a more significant and costly problem.
Once our team were confident in the results, they contacted Mr S to confirm his Golf GTI was ready for collection. He was impressed with the quality of the work, the expertise of our VW specialists, and the efficient turnaround, all at a better value than a main dealership.
Mr S collected his VW Golf GTI from Standish Service Station, Standish, with full confidence that the engine coolant bypass valve failure had been accurately diagnosed, repaired, and verified.
VW Warning Light? Book a VW Cooling System Inspection
Is your VW Golf GTI showing an engine management light? Having the fault investigated early is the smartest way to prevent a minor issue from turning into a bigger and more expensive repair.
Cooling system faults can develop for a variety of reasons, and getting to the cause promptly helps reduce the risk of further wear or damage to related components, saving you unnecessary repair costs down the line.
Choosing a VW specialist is essential to understand what’s going on within your Volkswagen’s cooling system and to receive an accurate repair.
At Standish Service Station, Standish, our VW specialists use Volkswagen manufacturer-level diagnostic software, technical data, and hands-on experience to investigate faults like the P2681 fault code and resolve them correctly the first time.
