BMW Exhaust Camshaft Problem
“Something clearly wasn’t right.”
That was the assessment from Mr E, a local used-car dealer.

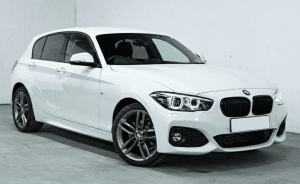

After selling a BMW 118i, the vehicle was returned with complaints of rough idle and a BMW engine warning light appearing on the dashboard. Initial investigations at his used-car dealership hadn’t uncovered the cause.
With no clear reason for the engine behaviour, the car was brought to our independent BMW specialists at Standish Service Station, Standish, for a closer look.
Although the symptoms didn’t immediately point to a single fault, they suggested an underlying engine timing issue. A structured diagnostic approach allowed us to trace the concern to a BMW exhaust camshaft problem affecting performance.
Inside this blog, you’ll uncover how our team used their expertise to identify and resolve the vehicle’s problem.
Understanding What Was Causing the BMW 118i Rough Idle
When the BMW 118i arrived at Standish Service Station, our technicians followed their usual approach to complex engine concerns: listening to what Mr Ehad had to say about the problem first, then confirming the symptoms he described through structured checks.
The used-car dealership explained that the vehicle had been showing a BMW engine warning light, running unevenly at idle, and occasionally displaying a drivetrain malfunction message.
As they’d been unable to find the cause, our role was to establish what the engine systems were indicating.
With that context, our initial assessment involved:
- A visual check under the bonnet for disturbed components or signs of recent work.
- A full system scan using BMW manufacturer data to review stored and active fault codes.
- A controlled engine start to monitor idle behaviour.
The visual inspection didn’t reveal an obvious explanation, so our focus shifted to the fault code information.
The system scan identified two fault codes that directly related to the reported symptoms:
- 130304 – VANOS exhaust cam jammed.
- 160021 – Crankshaft sensor loss of synchronisation.
(VANOS is BMW’s variable valve timing system, responsible for adjusting camshaft position during engine operation.)
Together, these codes showed our technicians three important things:
- There was a fault affecting exhaust camshaft control/VANOS exhaust cam control.
- The camshaft and crankshaft were no longer operating in sync.
- The rough idle and BMW engine warning light were part of the same issue.
Although these findings aligned with the symptoms Mr E had described to us, fault codes alone don’t explain the cause. To do so, a further investigation was needed to confirm the BMW exhaust camshaft problem.
How did we determine BMW Exhaust Camshaft Timing Was Incorrect?
After the initial checks confirmed VANOS and synchronisation faults, our focus shifted to a closer examination of the BMW 118i engine timing system. As timing-related issues can stem from various sources, a structured and evidence-led approach was essential.
Using BMW technical data and guided testing steps, our technicians followed a clear plan:
- Verifying timing electronically by comparing camshaft and crankshaft signals with an oscilloscope.
- Removing the rocker cover and associated components to allow physical inspection of the timing system.
- Assessing the VANOS system to determine whether the issue involved the valves, pulley, or camshaft.
The oscilloscope results marked a key moment, showing a signal pattern consistent with incorrect exhaust camshaft timing and ruling out a sensor-only issue. This led our team to move on to mechanical checks.
To confirm the findings, the rocker cover and high-pressure fuel injectors were removed, allowing full access to the camshaft and timing components. This also enabled precise physical timing measurements.
Both electronic testing and physical inspection pointed to the same outcome…
The exhaust camshaft wasn’t positioned correctly in relation to the crankshaft.
Further investigation then focused on the systems responsible for controlling and monitoring exhaust camshaft timing.
Two connected issues were identified:
- The exhaust camshaft position reference wasn’t being read accurately.
- A fault affecting the exhaust camshaft timing adjustment system prevented correct positioning.
As a result, the engine control system couldn’t consistently align the requested camshaft position with the actual position. This caused incorrect valve timing, particularly at idle, leading to rough running, a BMW engine warning light, and drivetrain malfunction messages.
With the cause confirmed, the next step was to complete the required repairs to restore correct engine timing.
Completing Repairs for the BMW Exhaust Camshaft Fault
After confirming the cause of the BMW exhaust camshaft problem, our BMW specialists explained the findings to Mr E, outlining what work was needed to restore correct camshaft timing and stable engine operation.
This ensured he had a clear understanding of the issue and the required repair.
At Standish Service Station, Standish, no repair work begins until everything has been discussed and agreed. This ensures you remain informed and in control at every stage.
Once approval was given, our experts sourced high-quality BMW replacement parts and began the repair, following BMW procedures carefully.
The repair was carried out in the following stages:
1. Removal of affected timing components
Upper engine components were removed in accordance with BMW repair guidance, providing safe access to the exhaust camshaft timing components.
2. Installation of replacement exhaust camshaft and timing components
The replacement camshaft and related timing components were installed in accordance with BMW manufacturer procedures.
3. Renewal of related timing-control components
Associated timing-control components, including parts of the VANOS system, were renewed to support reliable operation.
4. Engine timing setup and verification
BMW timing tools were used to set and confirm correct synchronisation between the camshaft and crankshaft (as specified by BMW).
5. Final BMW engine reassembly
With the timing confirmed, the vehicle’s engine was fully reassembled in accordance with BMW procedures. This ensured all components were refitted securely and correctly.
Once reassembly was complete, the BMW 118i was ready for the final stage of our repair process: the confirmation checks.
How We Confirmed the BMW Exhaust Camshaft Problem Was Resolved
After the repair work was completed, our BMW experts carried out a series of checks to confirm the camshaft timing issue had been resolved and the engine was operating correctly.
This confirmation stage involved:
- Assessing the vehicle’s camshaft and crankshaft timing after engine reassembly.
- Running system checks to confirm no related faults remained.
- Monitoring engine behaviour at idle and during a controlled road test.
These checks confirmed correct camshaft timing, resolved the BMW 118i rough idle, and ensured the BMW engine warning light no longer appeared.
Once the checks were complete, Mr E was contacted to confirm the outcome. He was pleased with the result and confident that the BMW 118i was running smoothly again.
With his confidence restored, he left Standish Service Station with the vehicle operating exactly as it should, with stable idling and no further timing-related concerns.
BMW Exhaust Camshaft Concerns? Arrange Your BMW Check-Up at Standish Service Station
Is your BMW 1 Series running unevenly or showing a BMW engine warning light? If so, it’s important to have the issue looked into before it leads to further problems.
BMW engine timing issues can manifest in different ways, and identifying the root cause early can help avoid more extensive BMW 1 Series engine repair later.
To do so, accurate testing by expert BMW technicians is essential for understanding the fault.
At Standish Service Station, Standish, our independent BMW specialists use BMW technical data, manufacturer-grade technology, and experience to investigate BMW exhaust camshaft problems, BMW VANOS failures, and BMW engine timing issues.
Here’s why drivers across Standish choose Standish Service Station for BMW engine repair:
- A courtesy car is available to minimise disruption.
- Expert BMW technicians familiar with BMW timing systems.
- 12-month parts and labour guarantee for peace of mind.
Join the {{review-count}} other local drivers who’ve rated us {{average-rating}} stars on Google for excellent value and accurate repairs.
If your BMW shows signs of timing issues or warning lights, call Standish Service Station, Standish, to book a BMW check-up.
