P200A21 Mercedes Problem

For Mrs M, her once reliable Mercedes had become a source of constant frustration. Some days it refused to start altogether, while on other occasions it started but stayed locked in Park. On top of that, the dashboard lit up with the engine management light, transmission fault, and tyre pressure warning.

Over several weeks, the Mercedes stood unused, adding to the inconvenience and uncertainty she faced. It was at that point that she brought the car to Standish Service Station.

At Standish Service Station, we’re experienced in solving complex Mercedes cases. Our structured approach allows us to move past the surface clues, uncover the true causes, and put together a repair plan that works first time. That was never more appropriate than in a case like Mrs M’s car. So without hesitation, we got straight to work…

Initial Findings: P200A21, 056200 and 0C2A00 Codes

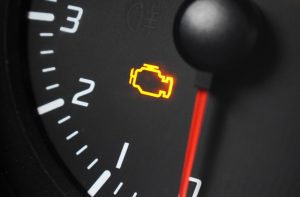

When Mrs M’s Mercedes was brought to Standish Service Station, it had already been undrivable for weeks. The car refused to come out of Park, and the dashboard was showing the engine management light, transmission alert, and tyre pressure warning.

Our first step was to run a system scan using dealer-level equipment. The initial findings logged three fault codes, each pointing to a different part of the vehicle:

• P200A21 – Charge movement flap malfunction
  This code relates to the inlet manifold. Inside the inlet manifold are charge movement flaps that regulate airflow into the engine. When they fail to move correctly, the ECU records a fault. Symptoms often include sluggish performance, uneven running, and an engine management light that won’t clear.
• 056200 – Circuit 87 undervoltage (transmission)
  Circuit 87 provides ignition-switched power. In this case, the transmission control module wasn’t receiving the correct voltage. Without this supply, the gearbox cannot function, leaving the vehicle stuck in Park and unable to select Drive or Reverse.
• 0C2A00 – Oil pressure low
  The scan also flagged a low oil pressure fault. This always requires further inspection, since running with insufficient oil pressure can cause engine damage.

For our Mercedes specialists at Standish Service Station, these codes were useful clues, but only the start of the process. Fault codes show what the system has detected — they don’t explain why. To find the real cause, deeper testing was required.

From Scan Results to Root Cause: The Next Stage

With the codes logged, we moved on to our structured evaluation. This method allows each possible cause to be ruled in or out, until the underlying faults are confirmed.

Here’s what we did with Mrs M’s Mercedes at Standish Service Station:

• Transmission voltage analysis – The serial data showed the transmission module was reporting only 9 volts. When we tested directly at the connector, the reading was 13.4 volts. This proved the wiring and power supply were sound, leaving the fault inside the transmission control unit itself.
• Inlet manifold flap activation – Using our dealer-level diagnostic tools, we tested the inlet manifold charge flap. Power and ground were as they should be, yet the flap didn’t move. That ruled out electrical problems and confirmed a mechanical fault within the manifold.
• Oil pressure verification – Because the ECU had stored a low oil pressure code, we checked both the oil level and the pressure values. All results were within Mercedes specifications, proving this was a secondary effect rather than a genuine oil system fault.

By working through each system methodically, our team at Standish Service Station were able to move beyond the initial codes and uncover the real causes with confidence.

If your Mercedes is experiencing similar issues, call Standish Service Station on 01257 422899. Our specialists will trace the problem and fix it right the first time.

Repairs in Detail: Fixing the Mercedes Problems for Good

With the evaluation complete, we knew exactly what was needed. Each issue required its own targeted repair, which made this a more involved case than most. The first step was to call Mrs M. We explained our findings, set out the work required, and made sure she was happy before we began. Nothing went ahead without her approval.

Once authorised, our technicians at Standish Service Station began the repairs, using Mercedes technical data and dealer-level equipment to guide every stage.

Here’s what we carried out:

• Transmission control module (mechatronics unit) – The faulty unit was removed and replaced with a new Mercedes module. We then coded it to the vehicle using dealer-level diagnostic software, applied the latest gearbox software update, and performed a full initialisation sequence. This ensures the new unit communicates seamlessly with the transmission system and ECU.
• Inlet manifold and charge movement flaps – A new inlet manifold, complete with charge movement flaps, was installed. Our technicians used manufacturer’s torque specifications during fitting to guarantee correct sealing and alignment. Once installed, the flaps were tested through diagnostic activation commands to confirm full operation. The P200A21 fault code cleared straight away.
• Oil system recheck – With the intake and transmission faults resolved, we reviewed the oil pressure once more. Everything measured correctly, meaning no mechanical work was needed, just a routine oil and filter replacement for peace of mind.
• Tyre pressure monitoring system reset – As the final step, the TPMS was recalibrated using dealer-level software, ensuring the reset was stored by the ECU and the dashboard warning was cleared.

Every repair was validated with follow-up scans and data checks, confirming that the faults had been eliminated and no new errors were present. This structured approach meant all issues were resolved in a single visit, giving Mrs M complete confidence in the result.

From Weeks of Frustration to Smooth Driving Again

For Mrs M, the biggest relief came when she could finally trust her Mercedes again. After weeks of struggling without it, she now had a car that started when she needed it, shifted out of Park with ease, and no longer showed any warning lights on the dashboard.

This wasn’t a straightforward repair. Electrical and mechanical issues had combined to create a complex case, but the structured approach at Standish Service Station meant everything was resolved accurately. Replacement parts were fitted, software updates applied, and follow-up testing confirmed the systems were working together as they should.

The outcome for Mrs M was more than just a car back on the road — it was the reassurance that her Mercedes had been returned to full health and could be relied on again.
